Product description

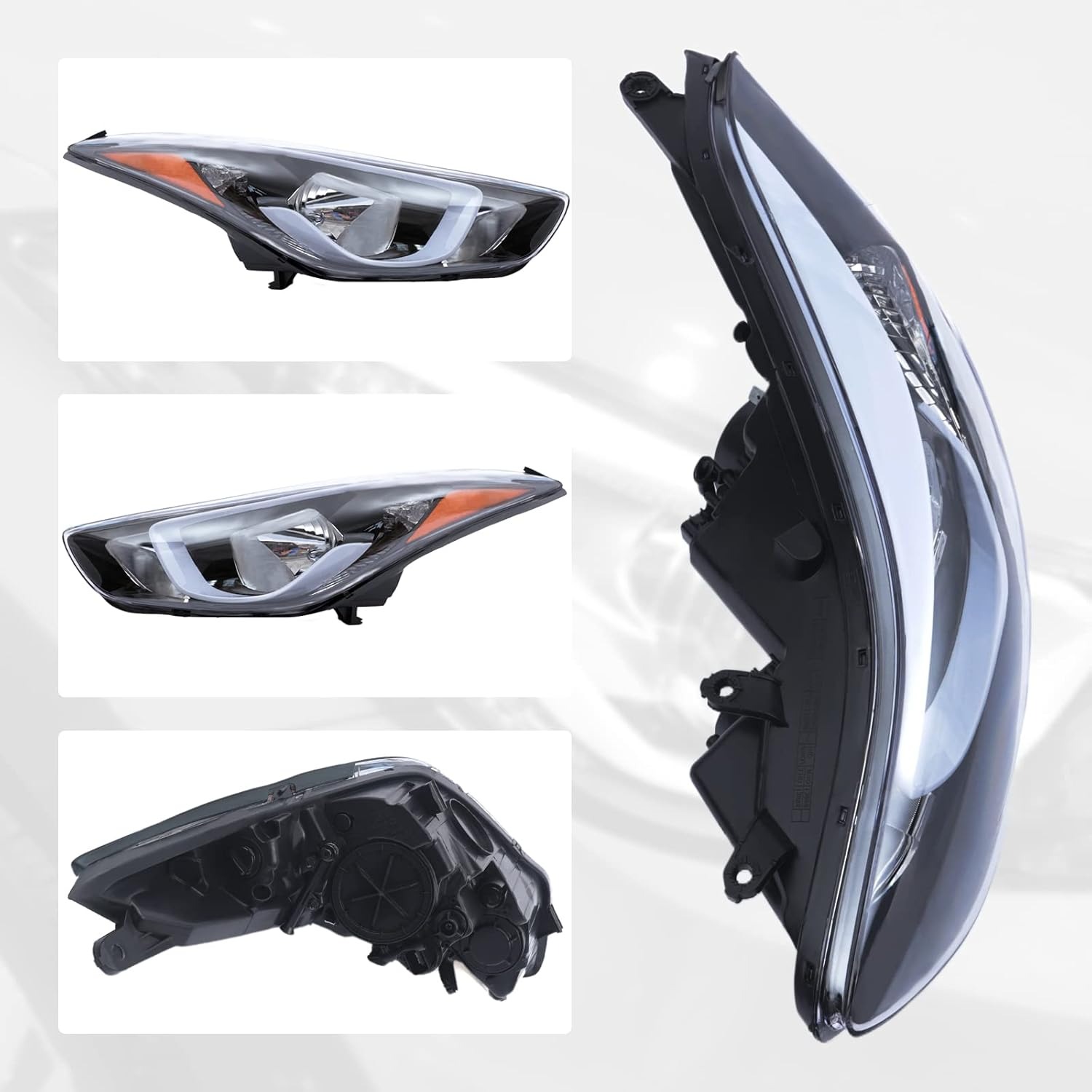

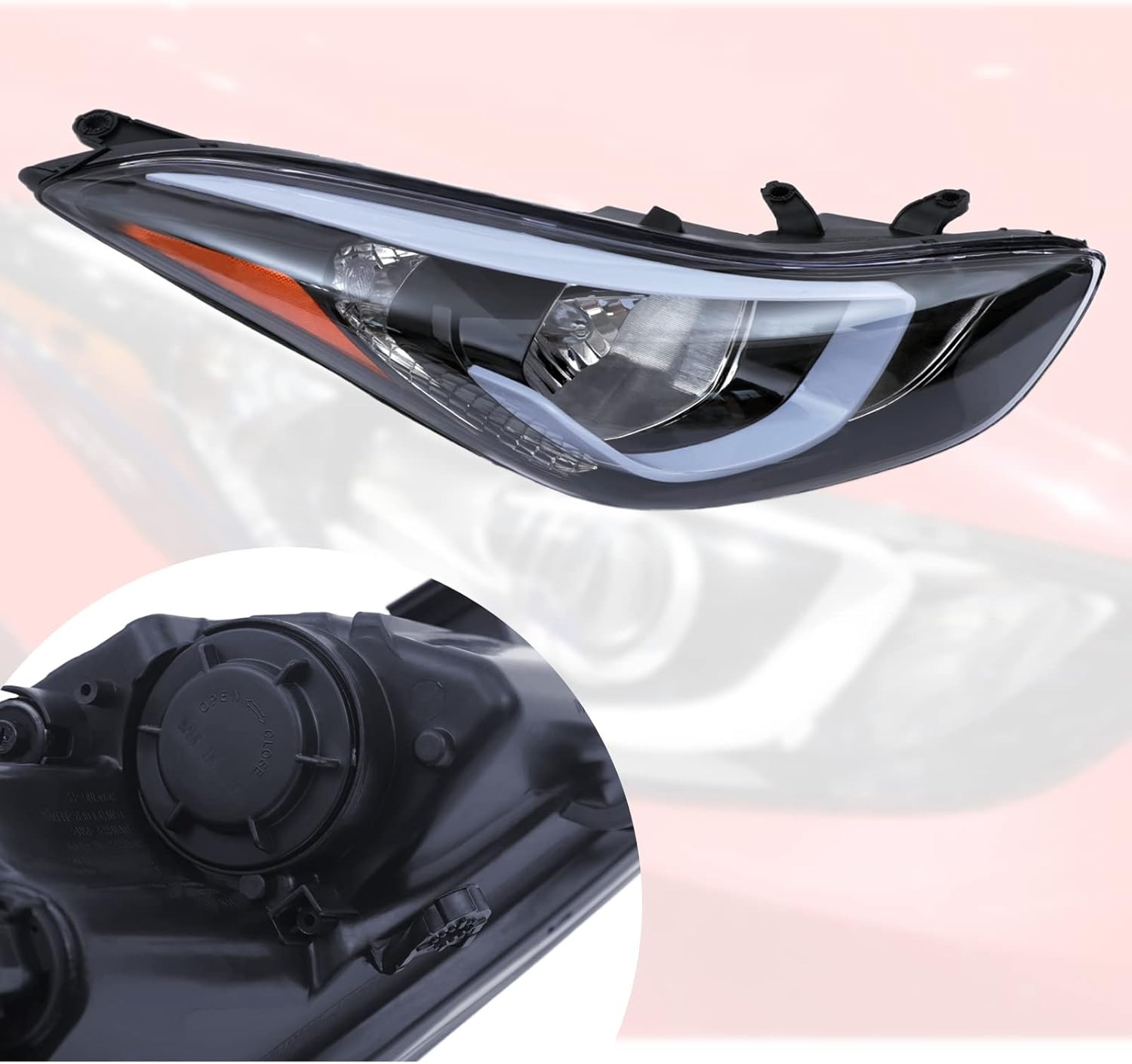

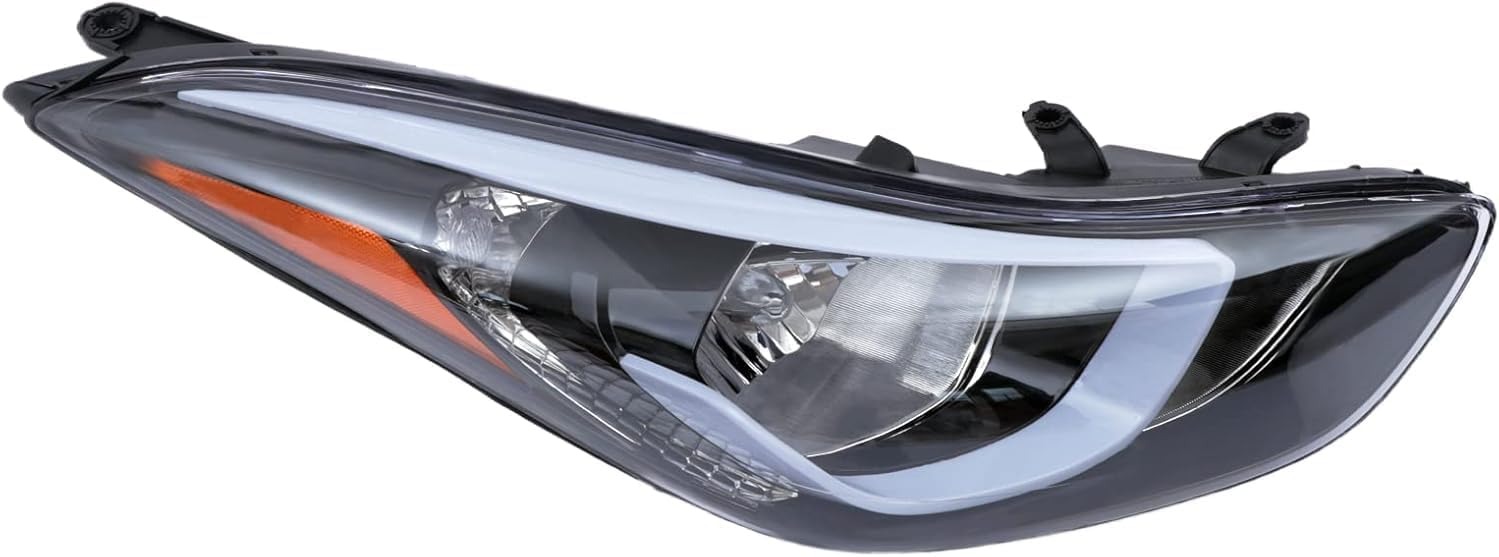

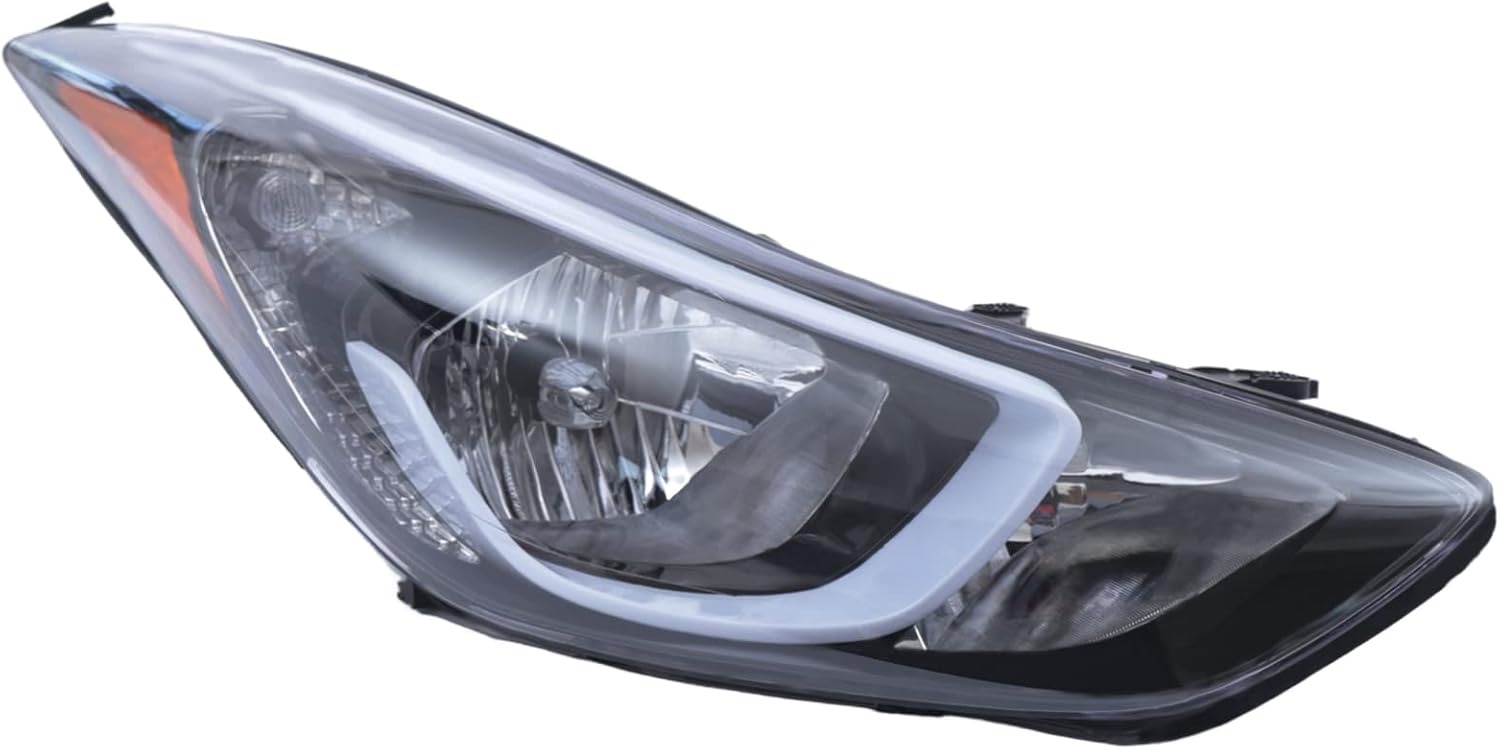

Headlights Replacement for 2014 2015 2016 Hyundai Elantra Halogen Right Passenger Side Headlight Headlamp
Specifications:
Lens Color: Clear
Housing Color: Black
Material of Lamp Cover: PC
Material of Bottom Shell: PP
Light Source Type: Halogen
High Beam Type: H1(Not Included)
Low Beam Type: H7(Not Included)
Turn Signal Type: PY21W(Not Included)
Side Marker Lamp: LED(Included)
Daytime Running Light: No

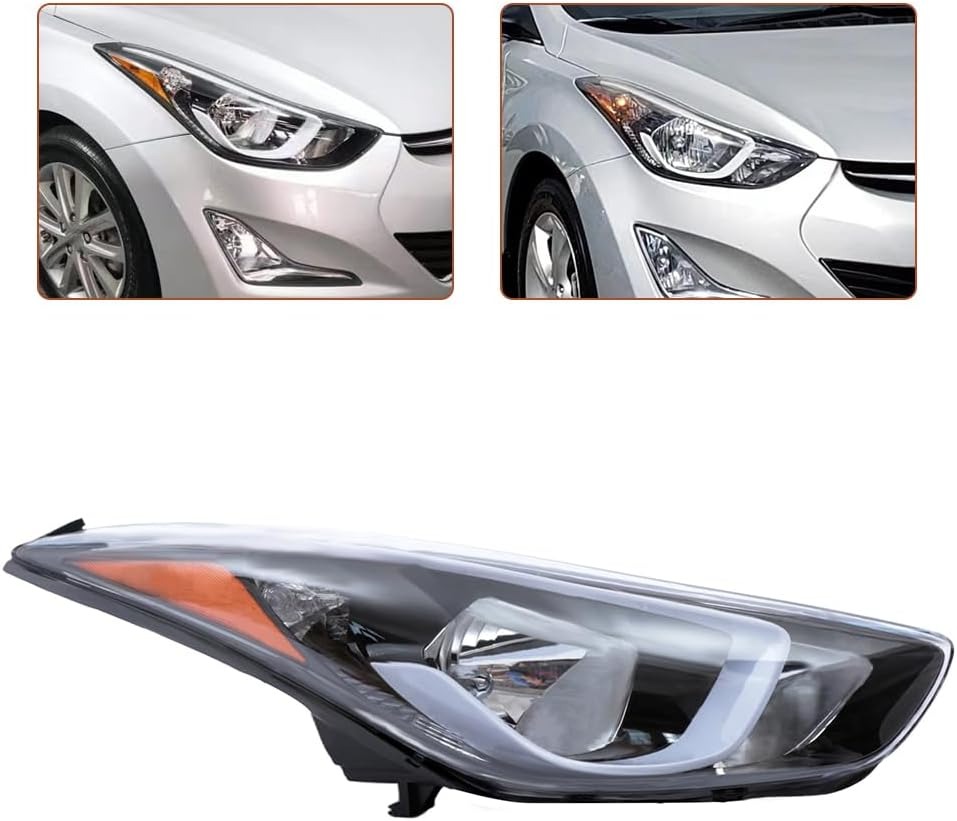

Fitment:
for 2014-2016 Hyundai Elantra GLS Sedan 4-Door 2.0L
for 2014-2016 Hyundai Elantra GL Sedan 4-Door 1.8L
for 2014-2016 Hyundai Elantra L Sedan 4-Door 1.8L
for 2014-2016 Hyundai Elantra Limited Sedan 4-Door 1.8L 2.0L
for 2014-2016 Hyundai Elantra SE Sedan 4-Door 1.8L
for 2014-2016 Hyundai Elantra Sport Sedan 4-Door 2.0L
for 2016 Hyundai Elantra Value Edition Sedan 4-Door 1.8L
Parameter:
OE/OEM Part Number: 921023Y500 HY2503187
Placement on Vehicle: Front, Right
Assembly Method: Closed

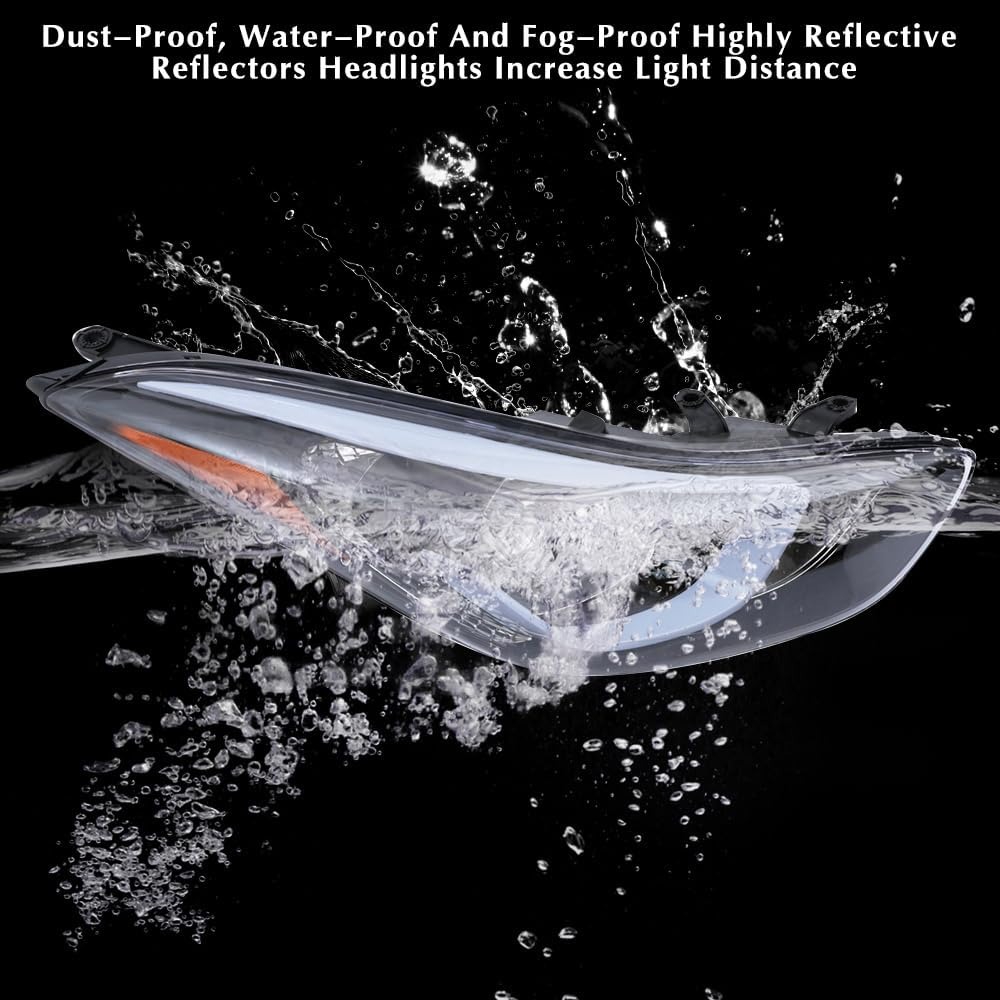

High Reflective Reflector
The high reflective reflector of this headlamp assembly increases the illumination distance, improving visibility and driving safety in low light conditions.
High-quality Material
The PC lamp cover and PP bottom housing make this product durable without frequent replacement, which saves your use cost to a certain extent.
Fashionable Appearance
The clear lens, black housing, and smooth lines give the whole product a sense of fashion and modernity, which is a cool addition to your car.
Key Reminder:
Our headlights are not OEM and excluding bulbs.
Matching bulbs need to be purchased prior to installation for proper installation.

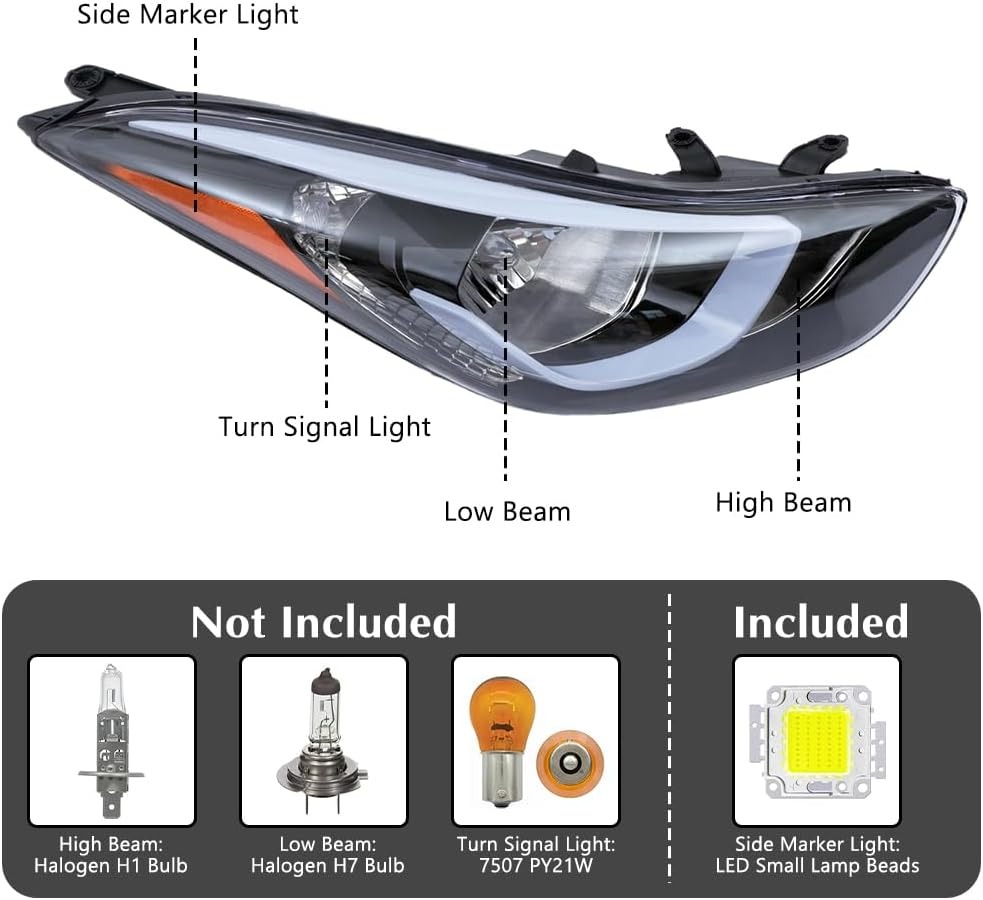

The matching bulbs need to be purchased:
low beam lamp - Halogen H7, high beam lamp - Halogen H1, turn signal lamp - 7507 PY21W (Single tail offset pin amber); The turn signal bulb needs to be installed on the turn signal lamp base of the headlight; The side marker light is already installed inside the headlight, and there is no need to install a separate bulb.; No daytime running light.

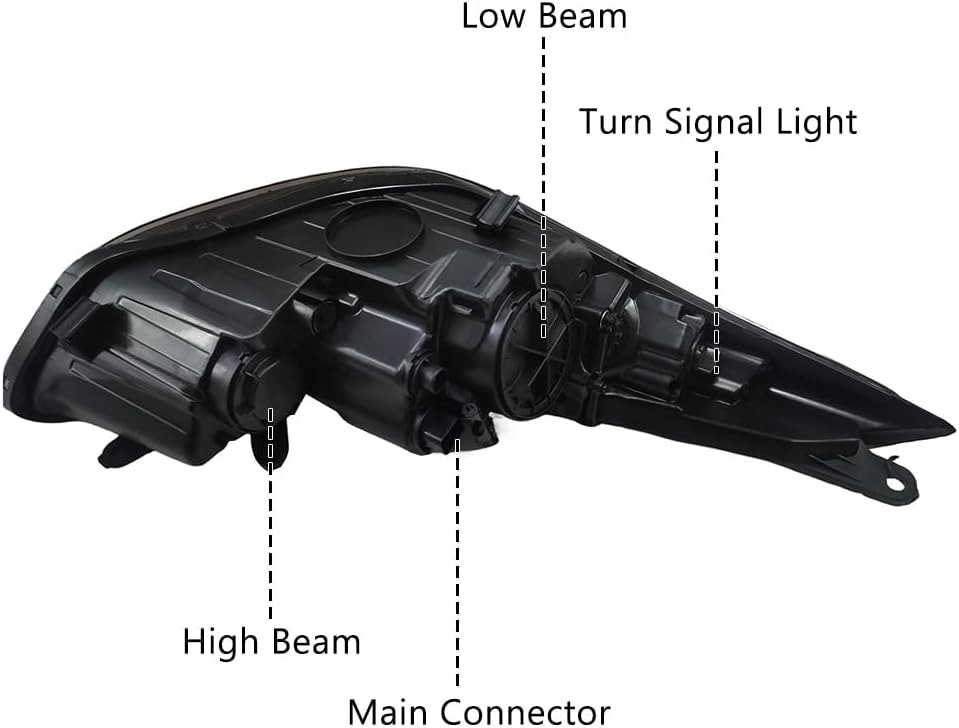

The Matching Bulbs Need To Be Purchased
Low beam lamp - Halogen H7
High beam lamp - Halogen H1
Turn signal lamp - 7507 PY21W (Single tail offset pin amber)
Before you begin to adjust the light, make sure check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.
1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.
2. Adjust the headlights individually. The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.
3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.
4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.
